Eurodecor

[tabs title=”” type=””]
[tab title=”Description”]

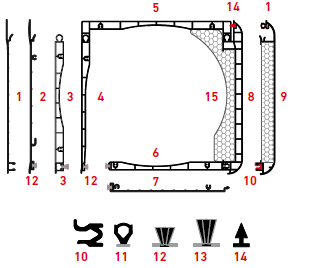

Description of Components

1. Profile Exterior Aluminium	9. Profile Internal ALU
2. Profile Exterior Aluminium for ALU Guide	10. Rubber for Internal Profile PVC
3. Profile Exterior PVC for PVC Guide	11. Rubber for Internal Profile ALU
4. Profile Exterior PVC for ALU Guide	12. Βrush ref 69-550
5. Profile Superior PVC	13. Βrush ref 80-700
6. Profile Lower PVC	14. Rubber for Eurodecor
7. Profile Lower ALU	15. Thermal Insulation Foam
8. Profile Internal PVC

Dimensions of Box Profiles

155mm

185mm

200mm

[/tab]
[tab title=”Technical Specifications”]

Dimensions of Box profiles

	A	B	C	D	E	F
155	155	170	160	144	135	34
185	185	199	189,6	174	165	34
200	200	214	204	189	179,5	34,5

Sizes & Combinations

155mm / 185mm / 200mm
4 PVC	3PVC + 1 AL	2 PVC + 2 AL	2 PVC + 2 AL	1 PVC + 3 AL

[/tab]
[tab title=”Components”]

Components for Eurodecor

Photo	Description	Colours
	Aluminium End Cap	White – Ral
	Plastic Entry Guide
	PVC Guide	White – Renolit
	PVC Guide 30×55
	PVC Guide 33×22.5
	PVC End Cap	White – Ral
	Inside Plate	F40 – F60
	PVC Guide with Wing	White – Brown
	Central End Cap
	Central End Cap with Hole
	Ring	F40 -F60
	Insulation for Eurodecor

Aluminium profile for Eurodecor

Photo	Description	Colours
	Interior side	Mill Finish – White/Silver – Ral – Wood
	External side	Mill Finish – White/Silver – Ral – Wood
	Bottom side	Mill Finish – White/Silver – Ral – Wood

[/tab]

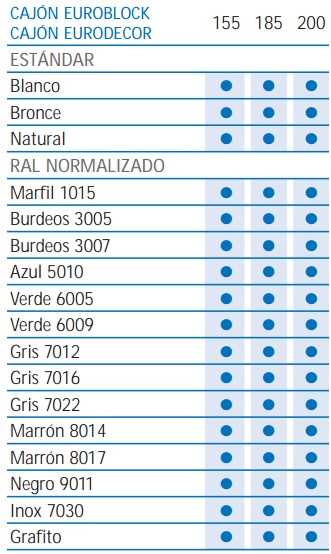

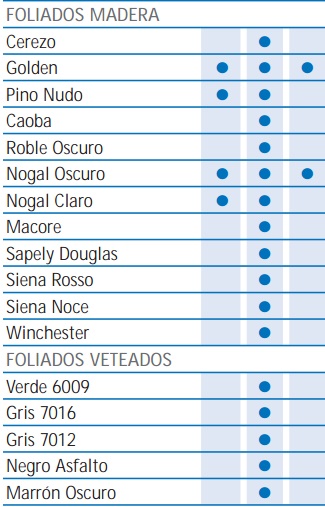

[tab title=”Colors”]

[/tab]
[/tabs]
