ALUGIX-39.5

Unpainted Aluminium Thickness0.27 mm
Nominal thickness8.38 mm
Area of Covering39.25 mm
Number of Slats by Meter25.47 ud
Maximum Recommended Width 2.900 mm
Normal Density Slat Weight (75 kg/m3)2.52 kg/m2
High Density Slat Weight (250 kg/m3)3.15 kg/m2
Packaging Unit390 m/l
Production Lengthsfrom 5.50 m to 6.50 m
Minimum Rolling Diameter42 mm


Plastic End Cap
Metallic Safety Spring with Plastic Cover
Metallic Safety Spring L130-L170


















Aluminium Rolling Shutter Filled with Foam 39.5

  The aluminium rolling shutter slats are made of aluminum foil externally and polyurethane stuffing inside. They are pre-dyed to provide lasting color stability, while offering insulation and safety. Used for the manufacture of aluminium rollers with synthetic box (PVC) or aluminium box. There is a choice of aluminum polyurethane rolls through a wide range of 62 shades, variety of colors which is constantly expanding.



Rolling diameter chart

  800 1000 1200 1400 1600 1800 2000 2200 2400 2600 2800 3000 3200 3400
Axle 40 110 115 120 130 140 145 150 155 160 165 170 175 180 185
Axle 60 115 120 130 140 145 150 155 160 165 170 175 180 185 190

Recommended box according to height

  Euroblock / Eurodecor Aluminium box Winblock
  155 170 185 200 225 137 165 180 205 150 200 230
Axle40 1900 2300 3000 2400 3900 1600 2100 2500 3500 - 3400 -
Axle 60 1800 2050 2700 3250 4840 1440 2480 2900 4040 - 3210 4880

Fire reaction according to UNE-EN 13501-1:2007+A1:2010

Slats without lights slits: Class B-s2,d0   Slats with lights slits: Ciase C-s2-d0

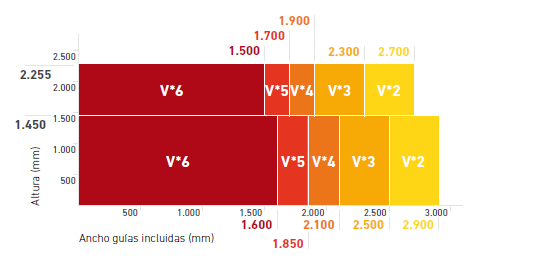

Wind Resistance (UNE -EN 13659 : 2004 + A1 : 2008 )

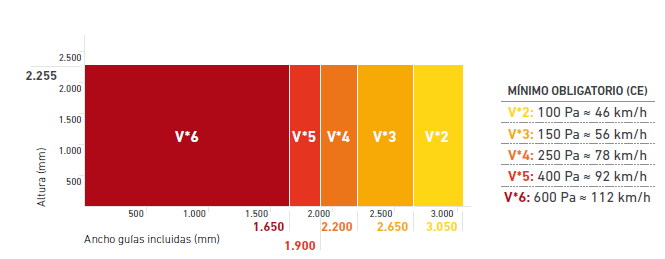

Wind Resistance High Density (UNE -EN 13659 : 2004 + A1 : 2008 )

  •
